Wireless Backup Cameras For Pickup Trucks: Your Ultimate Guide to Safety and Convenience pickup.truckstrend.com
Pickup trucks are synonymous with power, utility, and adventure. From hauling heavy loads to navigating challenging terrains, they are indispensable tools for work and leisure. However, their sheer size, elevated ride height, and often long beds create significant blind spots, making reversing, parking, and especially hitching trailers a daunting task. This is where wireless backup cameras for pickup trucks emerge as an essential safety and convenience upgrade. By providing a clear, real-time view of what’s behind your vehicle, these innovative systems transform the way you interact with your truck, turning stressful maneuvers into confident, controlled actions.
Why Wireless? The Unwired Advantage
Wireless Backup Cameras For Pickup Trucks: Your Ultimate Guide to Safety and Convenience
The primary appeal of wireless backup cameras lies in their name: they eliminate the need for complex, time-consuming wiring runs from the camera at the rear of the truck all the way to the monitor in the cab. Traditional wired systems often require drilling holes, routing cables through the chassis, firewall, and interior panels – a task that can be intimidating for DIY enthusiasts and costly if done by a professional.
Wireless systems, on the other hand, transmit video signals digitally or via analog radio frequencies, offering a host of advantages:
- Simplified Installation: No extensive wiring means a much quicker and easier setup, often achievable by the average truck owner with basic tools.
- Flexibility and Portability: Some battery-powered wireless cameras can be easily moved between vehicles or used for specific tasks like hitching, then stored away.
- Reduced Vehicle Modification: Minimizes the need for permanent alterations to your truck’s interior or exterior.
- Clean Aesthetics: Avoids visible wires cluttering the cabin.
For pickup truck owners, who often value utility and ease of modification, the wireless advantage is undeniable.
Key Components of a Wireless Backup Camera System

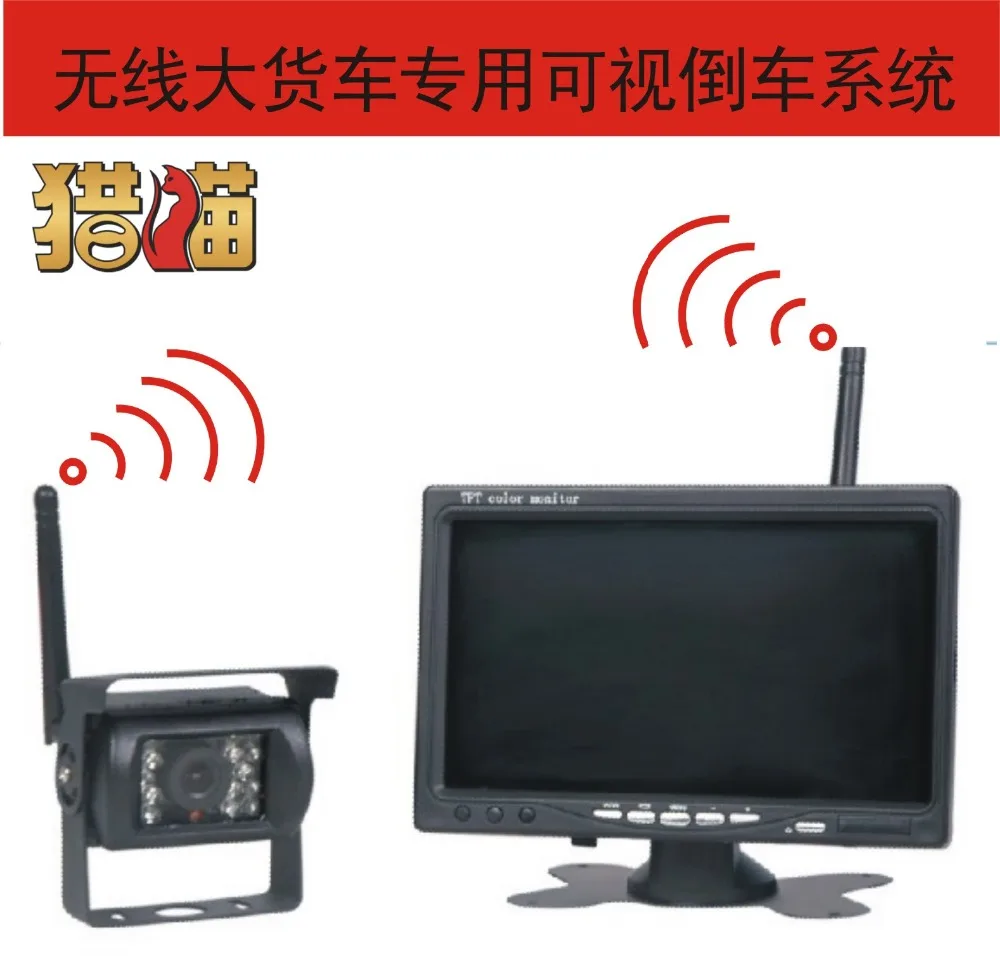

A typical wireless backup camera system for a pickup truck comprises several core components working in tandem:
- The Camera Unit: This is the eye of the system, equipped with a lens, image sensor (CMOS or CCD), and often infrared (IR) LEDs for night vision. It also contains a wireless transmitter to send the video signal. Cameras are typically weatherproofed (look for an IP rating like IP67 or IP68).
- The Monitor: This display unit receives the wireless signal from the camera. Monitors come in various sizes (from 4.3 inches to 7 inches or larger) and can be mounted on the dashboard, windshield, or integrated into a rearview mirror. Some systems use your smartphone as the monitor.
- Wireless Transmitter/Receiver: While often integrated into the camera and monitor respectively, some systems might have separate transmitter and receiver modules. These components handle the radio frequency transmission and reception of the video signal.
- Power Source: The camera typically draws power from your truck’s reverse lights (so it activates automatically when you shift into reverse) or from a constant 12V power source. Some specialized cameras (e.g., for trailers or temporary use) may be battery-powered. The monitor usually plugs into a 12V accessory socket or is hardwired into the vehicle’s electrical system.
Types of Wireless Backup Camera Systems for Pickups
The variety of wireless backup cameras available caters to different needs and preferences:
- License Plate Frame Cameras: These are among the most popular due to their discreet design and easy installation. The camera is integrated directly into a license plate frame, making it a simple bolt-on solution.
- Tailgate Handle Cameras: For a factory-integrated look, these cameras replace your existing tailgate handle with one that has a built-in camera. They offer a very clean aesthetic but require specific truck models and a bit more installation effort.
- Surface Mount/Bumper Cameras: These small, often adjustable cameras can be mounted directly onto a flat surface, such as the bumper, above the license plate, or near the hitch. They offer flexibility in placement.
- Magnetic/Trailer Hitch Cameras: Ideal for frequent trailer towers, these battery-powered cameras attach magnetically to the trailer hitch or the rear of the trailer itself. They are highly portable and designed for temporary use.
- Smartphone-Integrated Systems: Some cameras broadcast a Wi-Fi signal that your smartphone can connect to, displaying the video feed via a dedicated app. This eliminates the need for a separate monitor, leveraging a device you already own.
- Digital Wireless Systems: These transmit an encrypted, digital signal, which is less susceptible to interference and offers a clearer, more stable image than older analog systems. They typically have a slightly shorter range but superior performance.
- Analog Wireless Systems: While less common now, these use older analog radio frequencies (e.g., 2.4 GHz). They can be more prone to interference from other wireless devices but are often more affordable.
Choosing the Right Wireless Backup Camera for Your Pickup
Selecting the best wireless backup camera involves weighing several critical factors:
- Image Quality (Resolution & Sensor): Look for systems with at least 720p (HD) resolution; 1080p (Full HD) offers even greater clarity. CCD sensors generally perform better in low light and have less noise than CMOS sensors, though modern CMOS sensors have improved significantly.
- Field of View (FOV): A wider angle (120-170 degrees) is generally better for backup cameras, as it minimizes blind spots. Be aware that extremely wide angles can introduce a "fisheye" distortion.
- Wireless Range & Stability: For long pickup trucks or those frequently towing trailers, a system with a robust signal and good range is crucial. Digital wireless systems are preferred for their stability and resistance to interference.
- Monitor Size & Features: Consider how big a screen you need and where you’ll mount it. Features like adjustable parking guide lines, split-screen capabilities (for multiple cameras), and auto-dimming can enhance usability.
- Durability & Weatherproofing (IP Rating): Your camera will be exposed to the elements. An IP (Ingress Protection) rating of IP67 or IP68 indicates excellent resistance to dust and water immersion, ensuring longevity.
- Night Vision: Infrared (IR) LEDs are essential for clear visibility in low-light conditions or complete darkness.
- Power Source: Decide if you prefer a system that wires into your reverse lights (automatic activation), a constant 12V power source, or a temporary battery-powered solution.
- Installation Ease: If you’re planning a DIY install, opt for simpler license plate frame or magnetic options. If you want an OEM look, a tailgate handle camera might require more effort or professional help.
Installation Guide: Getting Your System Up and Running
While specific steps vary by model, a general DIY installation of a wireless backup camera involves:
- Mounting the Camera: Secure the camera in your chosen location (license plate frame, tailgate handle, bumper). Ensure it has a clear, unobstructed view.
- Connecting Camera Power:
- To Reverse Lights: This is common. Locate your truck’s reverse light wiring (often by removing a taillight assembly). Tap into the positive and negative wires of the reverse light so the camera powers on only when you shift into reverse. Use wire taps or solder for secure connections.
- To Constant 12V/Battery: Some cameras may have a separate battery pack or connect to a constant 12V source if you want it to be always on or for specific applications like monitoring a trailer.
- Mounting the Monitor: Choose a secure, non-obstructive location on your dashboard or windshield. Ensure it doesn’t block your view of the road.
- Connecting Monitor Power: Plug the monitor into a 12V accessory socket (cigarette lighter) or hardwire it to your truck’s fuse box for a cleaner installation.
- Pairing the Camera and Monitor: Most wireless systems automatically pair when powered on. If not, follow the manufacturer’s instructions, which usually involve a simple button press on both units.
- Testing and Adjustment: Shift into reverse and test the camera’s feed. Adjust the camera angle as needed to get the optimal view. Check parking guide lines if applicable.
Practical Tip: Before making permanent connections, do a "bench test" or temporary hookup to ensure all components are working correctly. Use zip ties to neatly secure any loose wiring.
Maximizing Your Wireless Camera’s Performance
- Keep the Lens Clean: Dirt, mud, snow, or water spray can significantly obscure the camera’s view. Regularly wipe the lens clean.
- Check Connections: Even with wireless systems, power connections can loosen over time. Periodically check that all connections are secure.
- Minimize Interference: While digital systems are robust, large metal objects, other strong wireless signals, or faulty electronics can sometimes cause interference. Ensure the camera and monitor antennas (if external) are positioned for optimal signal.
- Adjust Parking Lines: If your system has adjustable parking lines, calibrate them precisely for your truck’s dimensions to aid in parking and hitching.
Challenges and Solutions
- Interference/Signal Drop: This is the most common concern with wireless systems.
- Solution: Invest in a high-quality digital wireless system. Ensure clear line of sight between camera and monitor where possible. Reposition antennas if experiencing issues.
- Lag/Delay: A noticeable delay between real-time events and the monitor display can be dangerous.
- Solution: This is often an issue with cheaper analog systems. High-quality digital systems have minimal lag. Read reviews regarding latency before purchase.
- Power Management: Battery-powered units require recharging, and wired units need proper installation.
- Solution: For battery units, understand battery life and charging cycles. For wired units, ensure professional or careful DIY installation to prevent electrical issues.
- Durability: Exposure to harsh weather, vibrations, and road debris can damage cameras.
- Solution: Choose cameras with high IP ratings (IP67/IP68) and robust construction. Opt for reputable brands known for their quality control.
Wireless Backup Camera Price Table
Prices for wireless backup cameras vary widely based on features, brand reputation, resolution, and included components. Here’s a general overview:
| System Type / Model Example | Key Features | Pros | Cons | Price Range (USD) |
|---|---|---|---|---|
| Basic Analog Wireless | Low resolution (480p), basic monitor, IR night vision | Most affordable, simple setup | Prone to interference, lower image quality, potential lag | $50 – $100 |
| Mid-Range Digital Wireless | 720p HD resolution, stable digital signal, IR night vision, 5-inch monitor | Good balance of price & performance, reliable connection | Monitor size might be small for some, basic features | $100 – $250 |
| High-End Digital Wireless | 1080p Full HD, wide FOV, larger 7-inch monitor, advanced features (split-screen, recording) | Excellent image quality, highly reliable, feature-rich | Higher price point, potentially larger monitor footprint | $250 – $450+ |
| Smartphone-Integrated | 720p/1080p, Wi-Fi connectivity, app-based display | No separate monitor needed, leverages existing device | Relies on phone battery, app compatibility, phone screen size | $80 – $200 |
| Heavy-Duty/Trailer-Specific | Ruggedized, magnetic mount, long-range digital signal, extended battery life | Designed for harsh conditions, highly portable for trailers | Can be specialized and expensive, often requires recharging | $150 – $500+ |
| OEM-Style (Tailgate Handle) | 720p/1080p, factory-integrated look, specific to truck models | Cleanest aesthetic, looks like a factory option | Vehicle-specific, more complex installation, higher cost | $200 – $600+ |
Note: Prices are estimates and can fluctuate based on retailer, promotions, and specific model variations.
Frequently Asked Questions (FAQ)
Q1: Are wireless backup cameras reliable?
A1: Modern digital wireless cameras are highly reliable, offering stable video feeds with minimal interference. Older analog systems can be less reliable. Always opt for digital for best performance.
Q2: How far do wireless cameras transmit?
A2: Most consumer-grade wireless cameras have an effective range of 30-50 feet, which is more than sufficient for even the longest pickup trucks and attached trailers. Heavy-duty systems designed for RVs or large trailers can transmit further.
Q3: Do wireless backup cameras work at night?
A3: Yes, nearly all wireless backup cameras come equipped with infrared (IR) LEDs that provide excellent night vision, allowing you to see clearly in low-light or complete darkness.
Q4: Can I use a wireless backup camera with a trailer?
A4: Absolutely! Many systems are designed specifically for trailer use, often featuring magnetic mounts and longer transmission ranges. Some allow for multiple cameras to be paired with one monitor for comprehensive views.
Q5: What’s the difference between analog and digital wireless?
A5: Analog systems transmit signals that can be prone to interference from other devices (like Wi-Fi routers) and may suffer from static or signal loss. Digital systems encrypt and transmit data packets, resulting in a clearer, more stable image with less interference and often minimal lag. Digital is almost always preferred.
Q6: Is DIY installation difficult for wireless cameras?
A6: For most license plate frame or magnetic wireless cameras, DIY installation is relatively straightforward, involving basic wiring to the reverse lights and mounting the monitor. Tailgate handle or more integrated systems might require more effort or professional installation.
Conclusion
Wireless backup cameras for pickup trucks are more than just a luxury; they are a vital safety enhancement that empowers truck owners with increased visibility and confidence. From preventing costly bumper dings to simplifying the often-frustrating task of hitching a trailer, these systems provide an invaluable perspective that traditional mirrors simply cannot. By understanding the different types, key features, and installation considerations, you can confidently choose the perfect wireless backup camera to transform your pickup truck experience, making every reverse maneuver safer, easier, and stress-free. Invest in a wireless backup camera, and gain a clear view of the road – and life – behind you.
